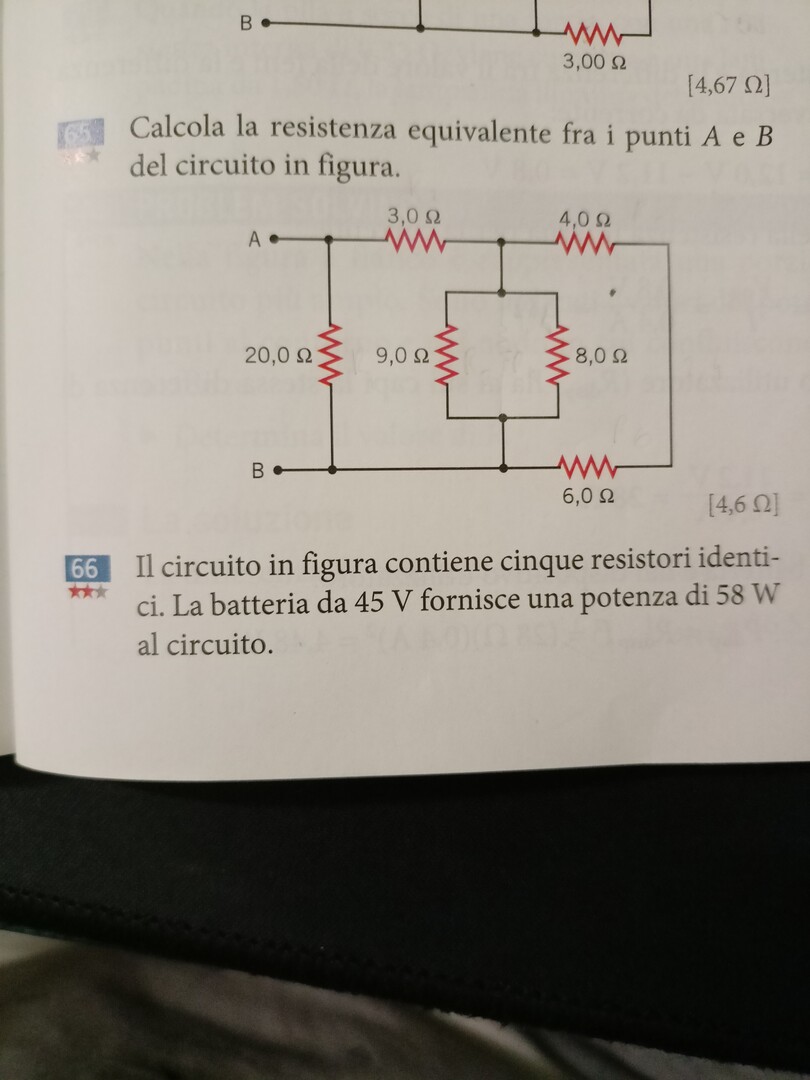

Numero 65. Calcola la resistenza equivalente fra i punti A e B del circuito in figura. [attach]60904[/attach]

StefanoPescetto · Accepted Answer

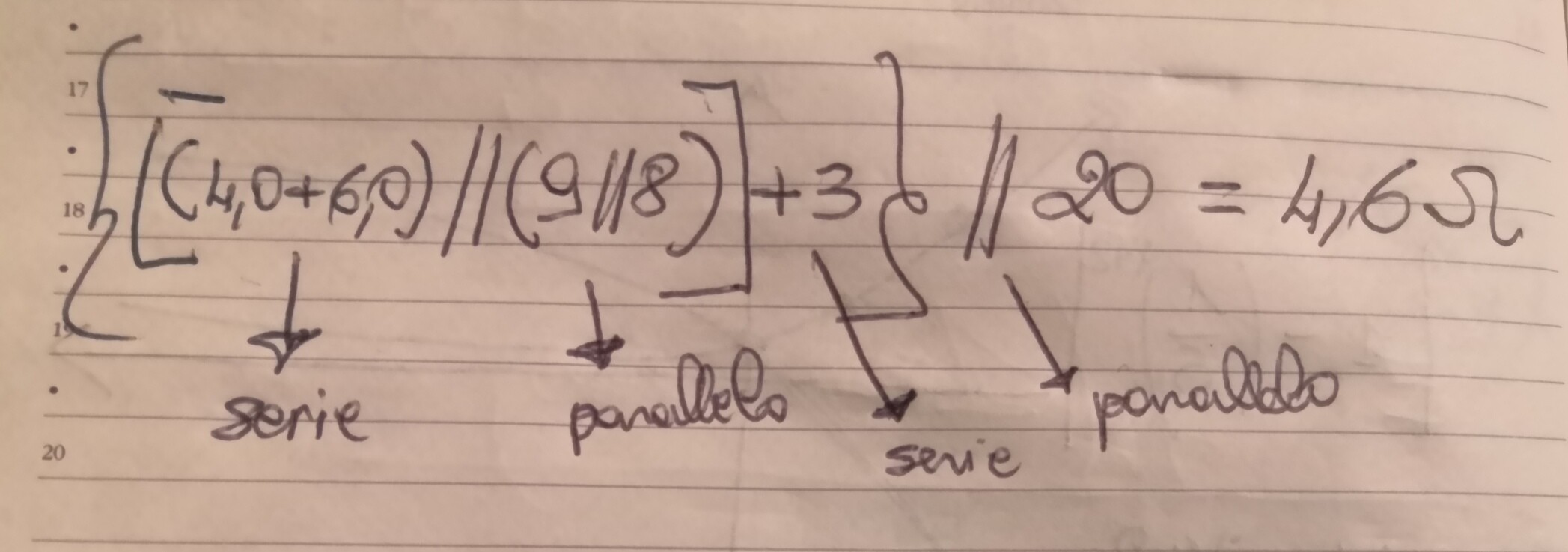

[attach]60905[/attach] 🥎🥎🥎

remanzini_rinaldo · Answer

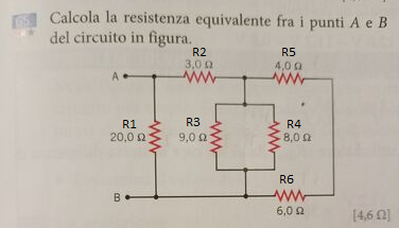

[attach]60913[/attach] R34 = R3//R4 = 72/17 ohm R56 = R5+R6 = 4+6 = 10 ohm  R3456 = R34//R56 = 72/17*10 / (72/17+10) = 2,975 ohm  R23456 = R2+R3456 = 3+2,975 = 5,975 ohm  Rab = R1//R23456 = 5,975*20/25,975 = 4,600 ohm
